PROCESS OF MANUFACTURING

  1. Step-1

  2. Step-2

  3. Step-3

  4. Step-4

  5. Step-5

  6. Step-6

  7. Step-7

  8. Step-8

  9. Step-9

(click step to see the details)

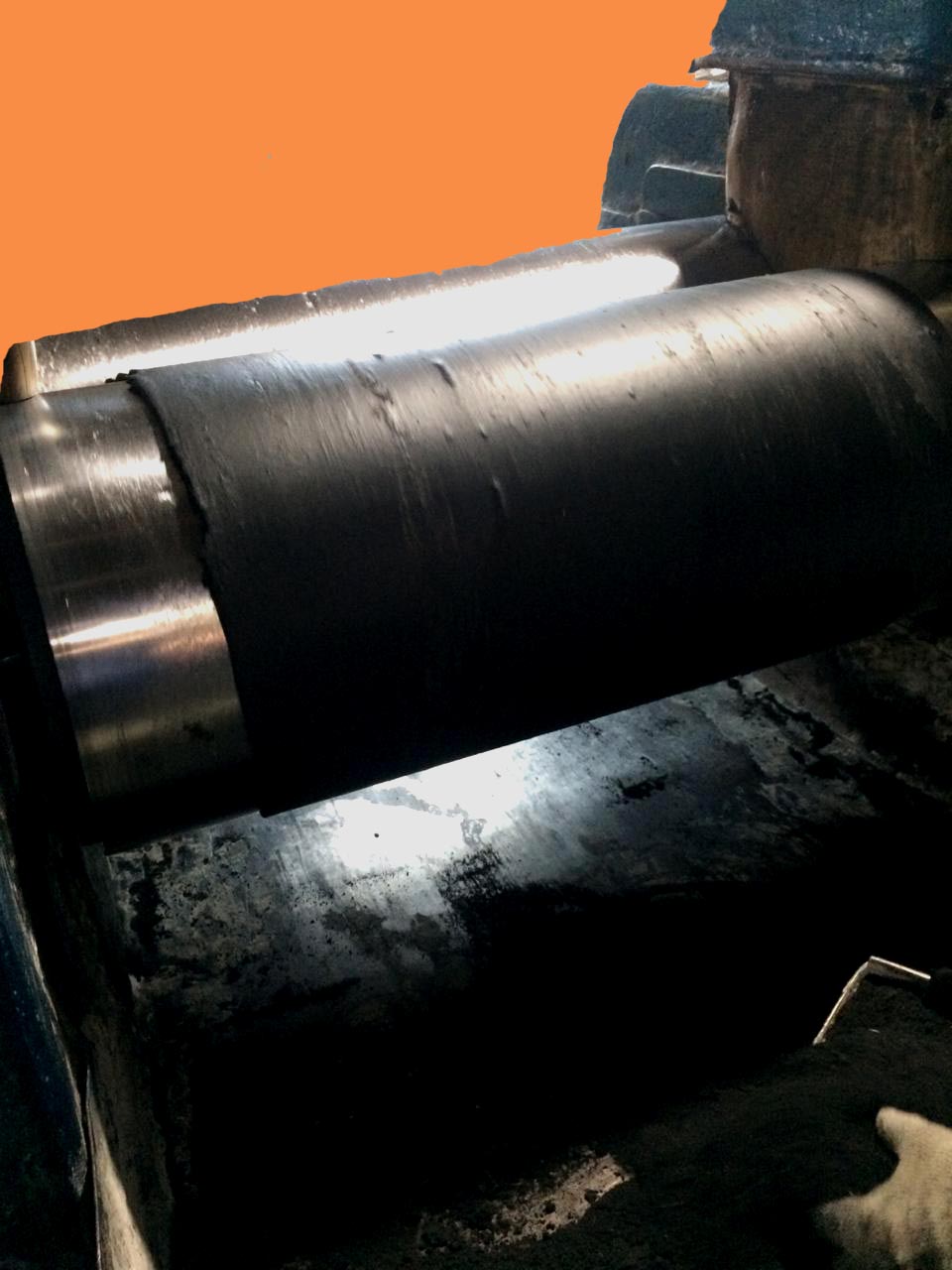

  1. Step -1:

    Processing the Raw materials.

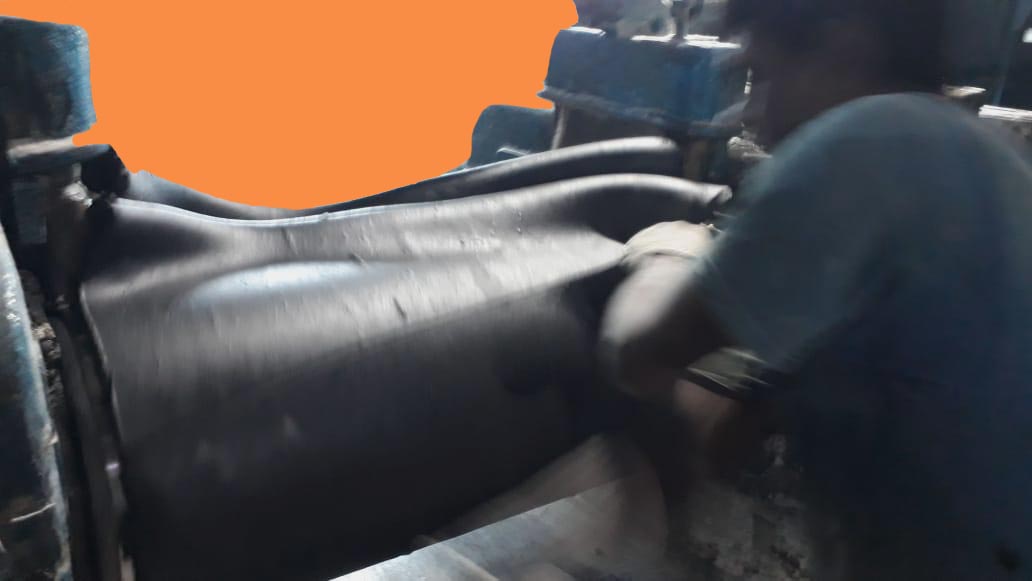

  2. Step -2:

    Formation of Rubber Sheet

    as per Products requirement

  3. Step -3:

    Cutting of Sheet

    as per Product's Dice requirement

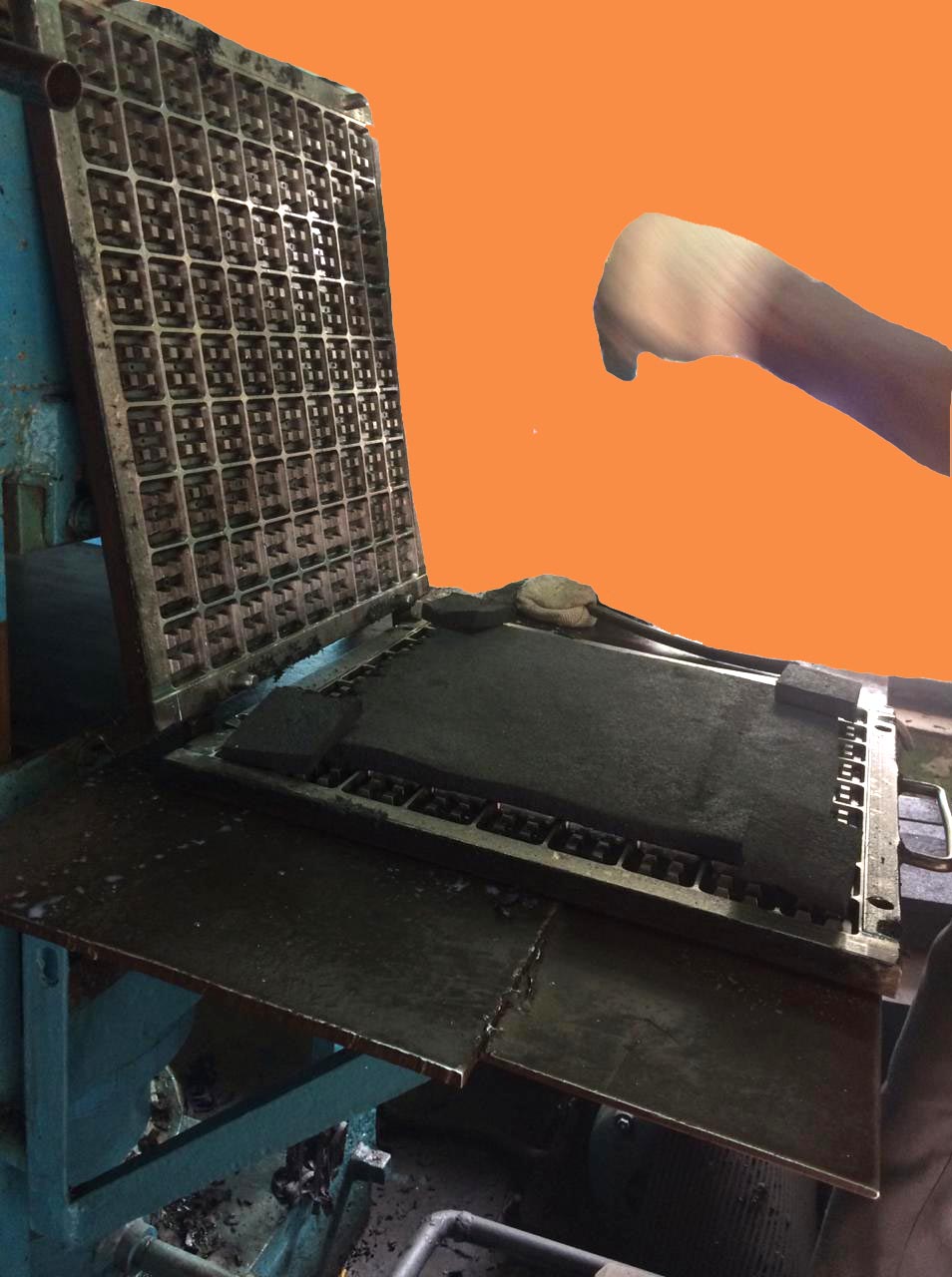

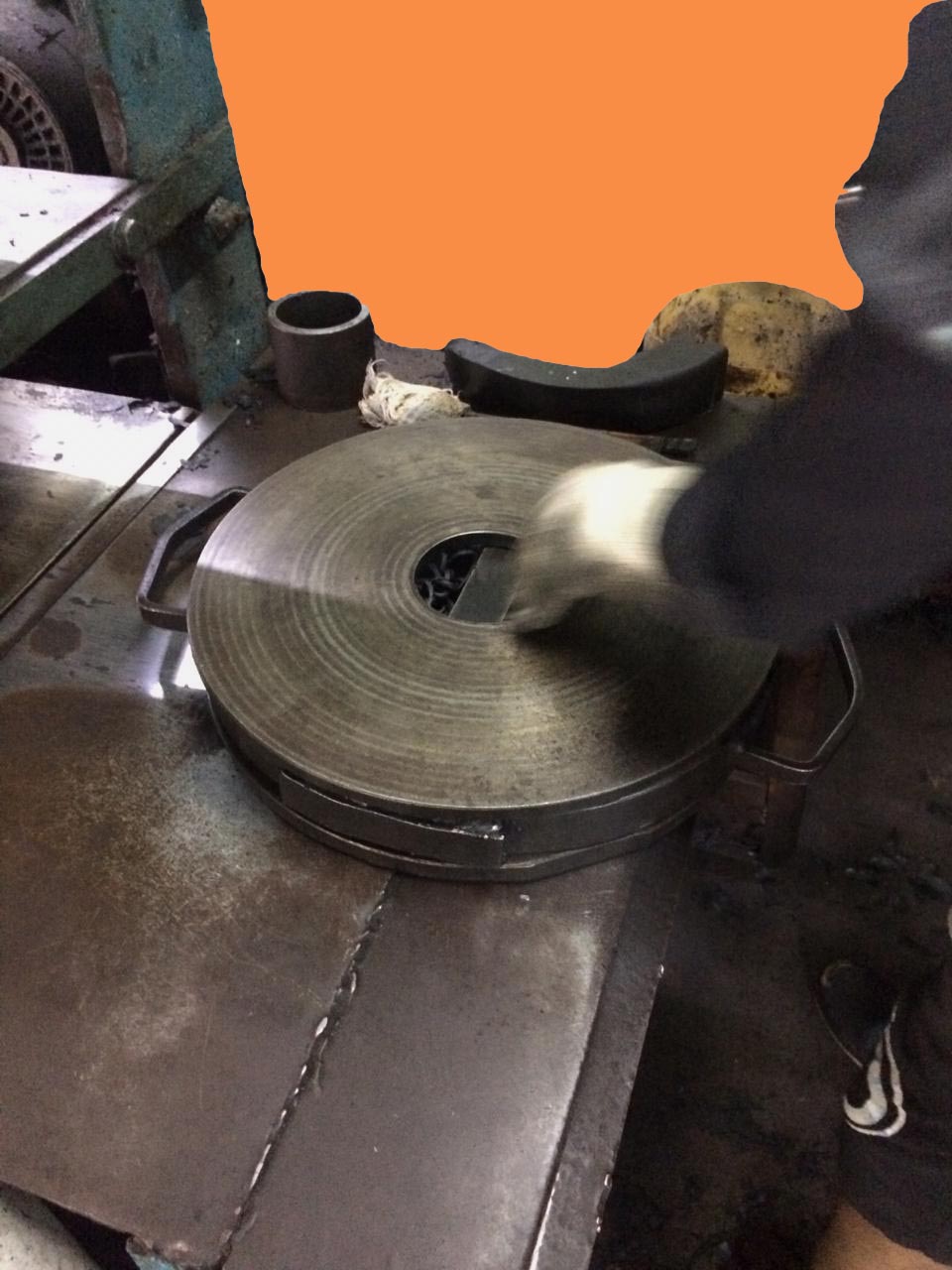

  4. Step -4:

    Place the Raw Rubber in the Dice.

  5. Step -5:

    Take out from Furnace.

    After Cutting

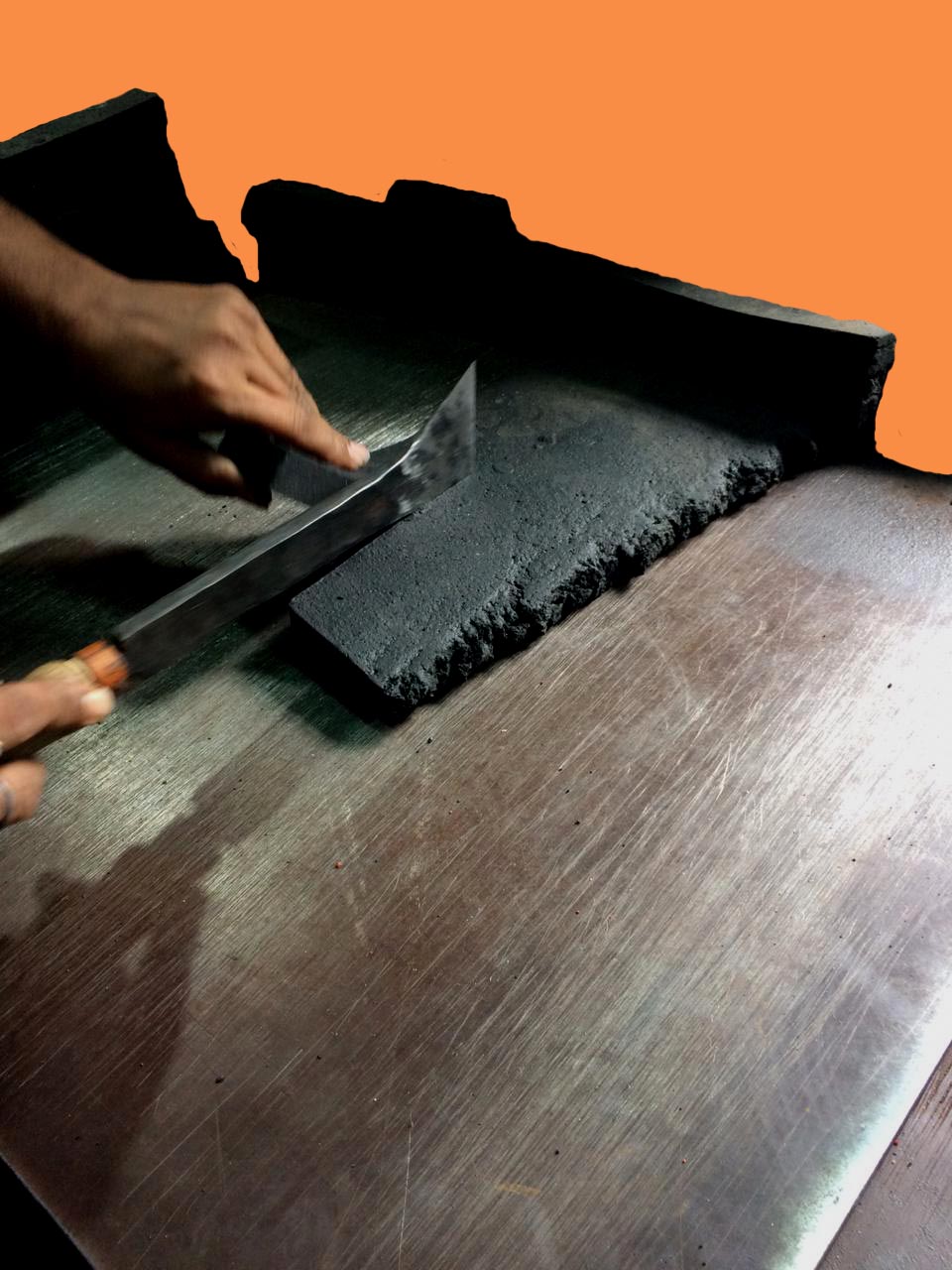

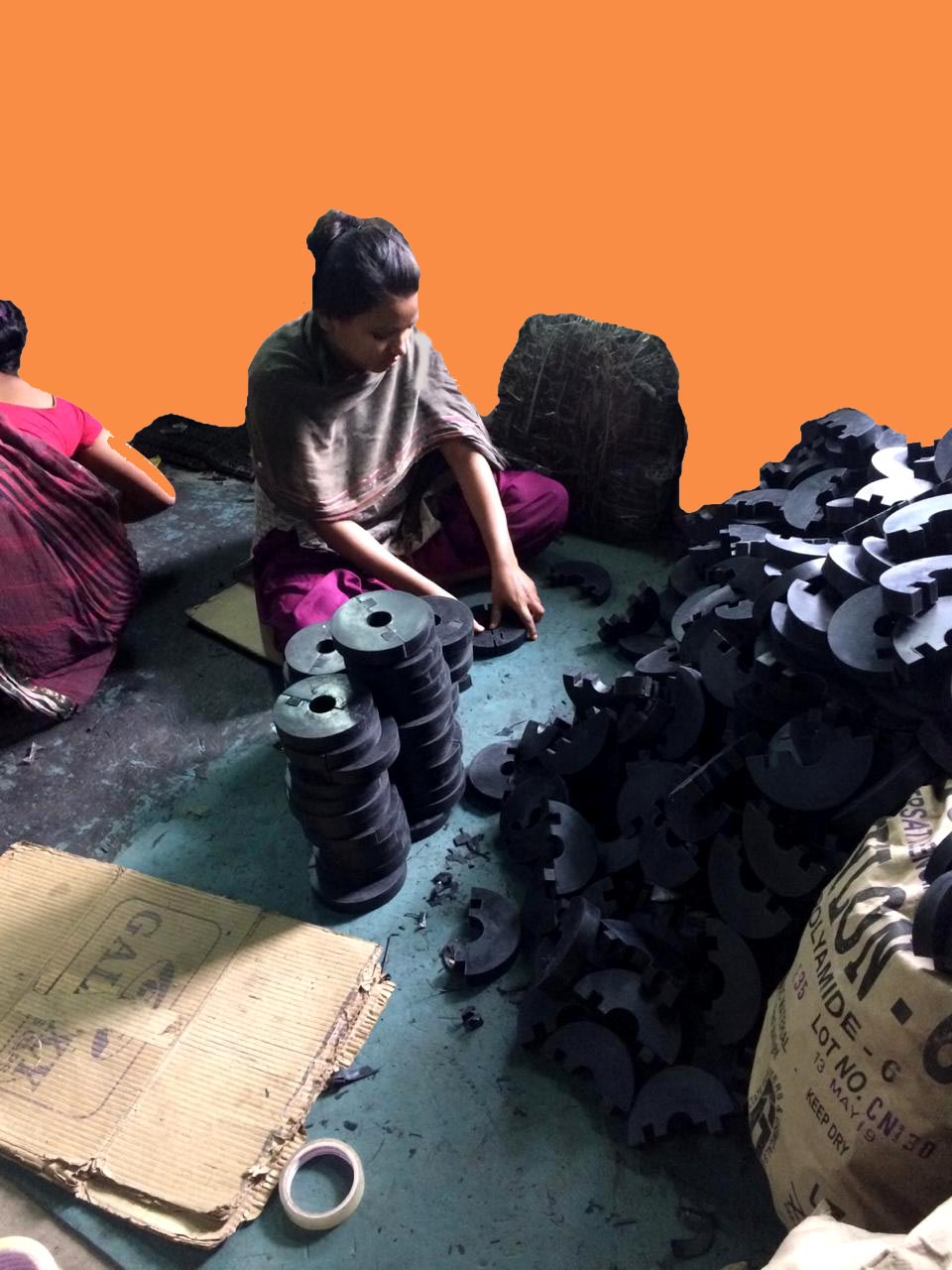

  6. Step -6:

    Finishing

  7. Step -7:

    Embossed with colour print

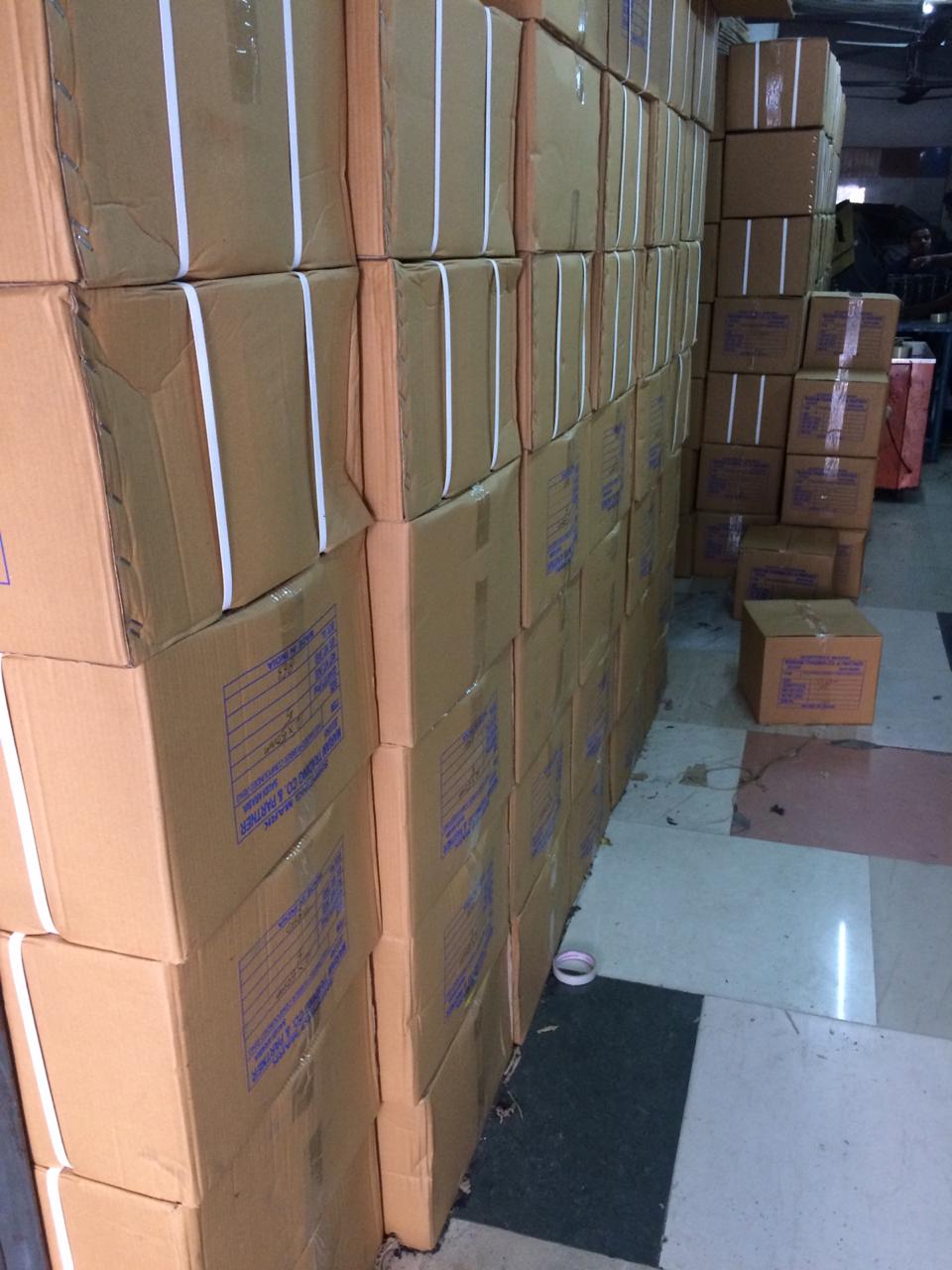

  8. Step -8:

    Packaging

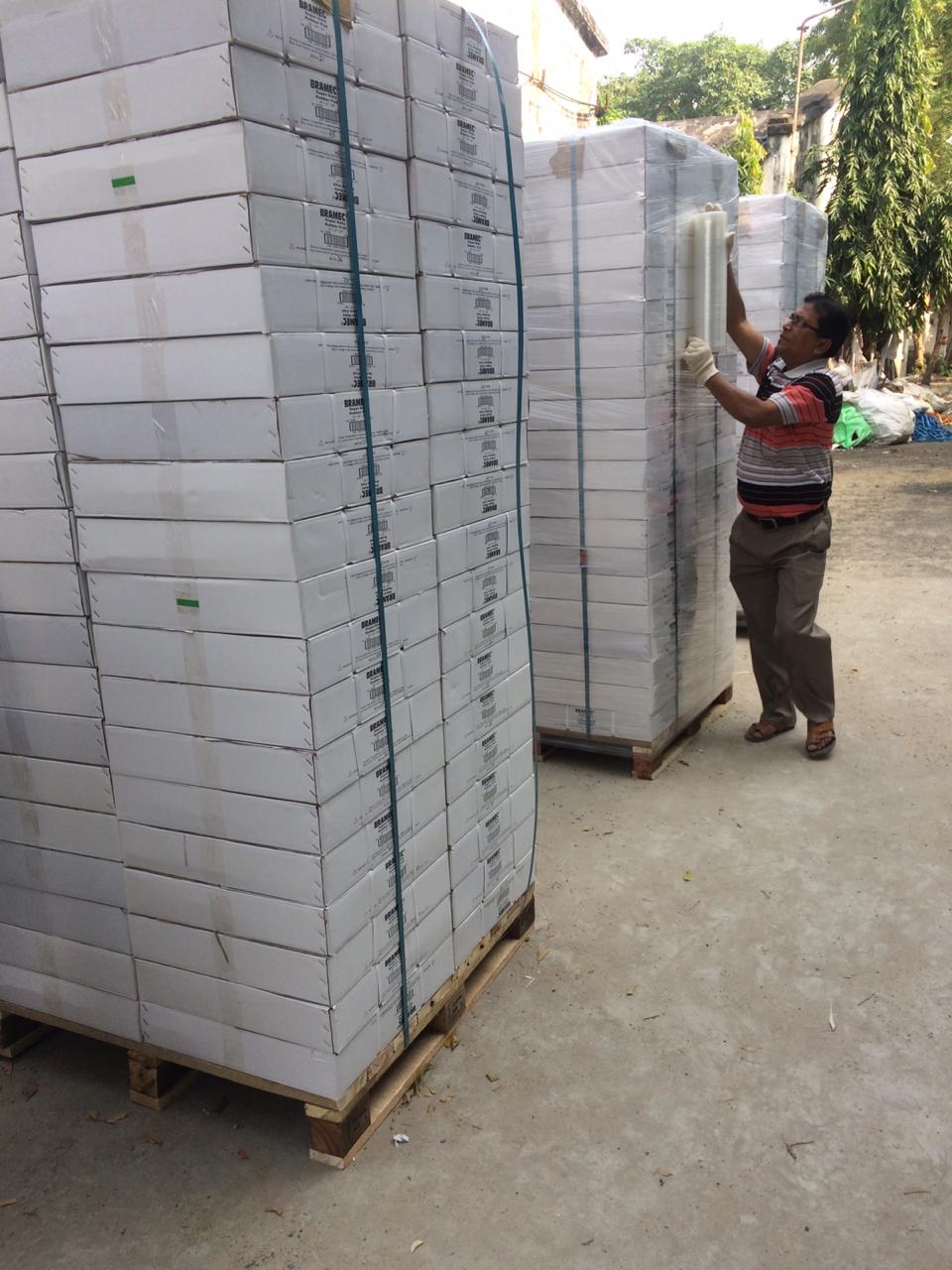

  9. Step -9:

    Place the boxes on palette

    and Stretch Wrapping

PRODUCT DETAILS

RUBBER CORK SANDWICH PAD

RUBBER CORK SANDWICH PAD MANUFACTURED FROM HIGH QUALITY NATURAL RUBBER AND INTERNATIONAL QUALITY OF CORK IMPORTED FROM PORTUGAL .CORKS ARE BEING PLACED IN BETWEEN TWO RIBBED TYPE RUBBER SHEET WITH GOOD QUALITY ADHESIVE . PADS ARE DESIGNED WITH ALTERNATIVE RIBS TO OFFER ADDITIONAL VIBRATION ABSORPTION . IT ABSORB BOTH HEAVY & LIGHT WEIGHT . .

LOAD CAPACITY : 3.5 KG / CM SQUARE
STANDARD DEFLECTION : 1.5MM TO 2 MM
SIZES AVAILABLE : 18X18X7/8" , 12X12X7/8" , 8X8X7/8" , 6X6X7/8" , 4X4X7/8" , 3 X 3 X 7/8" AND 2X2X7/8"

RIBBED RUBBER PADS

IT IS MANUFACTURED FROM HIGH QUALITY NATURAL RUBBER . WE CAN ALSO MANUFACTURE THE SAME PRODUCTS WITH SYNTHETIC RUBBER . ALTERNATING HEIGHT RIBS FOR EXTRA LOAD RANGE .

LOAD CAPACITY : 3.5 KG / CM SQUARE
DEFLECTION : 1.5MM TO 2MM
AVAILABLE SIZE : 18X18X3/8" ( 450X450X10MM ) , ALSO IN SMALL SIZES .

WAFFLE RUBBER PADS

WAFFLE RUBBER PADS MADE FROM NATURAL RUBBER AS WELL AS NEOPRENE RUBBER .IT IS HIGH PERFORMANCE 20MM THICK PADS . THERE ARE TWO DESIGNS OF WAFFLE PADS , ONE IS ROUND & ANOTHER IS SQUARE DESIGN . IT CONSISTS OF 81 MODULES , EACH MODULE SIZE OF 50MM X 50MM . IT IS CONNECTED BY THIN WEBBING . WE CAN CUT IT EASILY OF ANY SIZE WITH KNIFE .

RECOMMENDED LOAD : 75 KG / MODULE
DEFLECTION : 2 TO 2.5 MM
STANDARD SIZE AVAILABLE : 18' X18' X 3/4" OR 450 X 450 X 20MM .

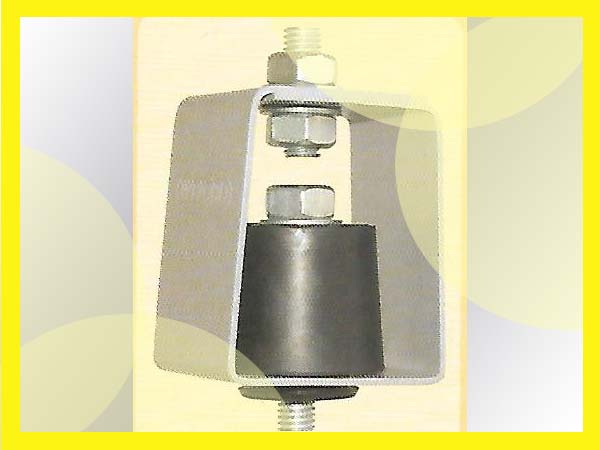

NEOPRENE BOX HANGER

POWDER COATED STEEL FRAME WITH NEOPRENE RUBBER ELEMENT WITH LOCKING SYSTEM .IT HAS DESIGNED FOR ISOLATION OF NOISE AND VIBRATION DEVELOPED BY SUSPENDED EQUIPMENTS & DUCTS .

RUBBER ELEMENTS ARE SO DESIGNED THAT RUBBER IN SHEAR AND COMPRESSION .RUBBER ELEMENTS PREVENTS SHORT CIRCUITING BY ELIMINATING POSSIBLE CONTACTS BETWEEN FRAME & LOWER ROD .A STEEL LOAD DISTRIBUTION PLATE EMBEDDED AT TOP OF ELEMENT . AVAILABLE UP TO 100 KG LOAD BEARING CAPACITY .

DUCT MOUNT / RESILIENT HANGER

NEOPRENE / NATURAL RUBBER MOUNTS WITH EXTENDED SLEEVE ARE BEING PLACED IN BETWEEN TWO ZINC PLATED METAL CAP . EXTENDED SLEEVE OF RUBBER PROTECTS METAL TO METAL CONTACTS BETWEEN TWO SUSPENDED ROD . IT HAS GOT TWO SIZES ONE IS 32MM DIA AND OTHER IS 42MM DIA . IT HAS DESIGNED FOR 8MM & 10MM THREADED RODS . ITS FUNCTION TO REDUCE THE NOISE FROM AIR DUCTS & SUSPENDED EQUIPMENTS .

Rubber Floor Mount

It is made from Natural Rubber , set of 4 nos . It is used in Air Condensing Unit . An economical solution for Noise & Vibration Control in non critical application .

Load rating:20kg-800kg per mount

Deflection:8mm-12mm

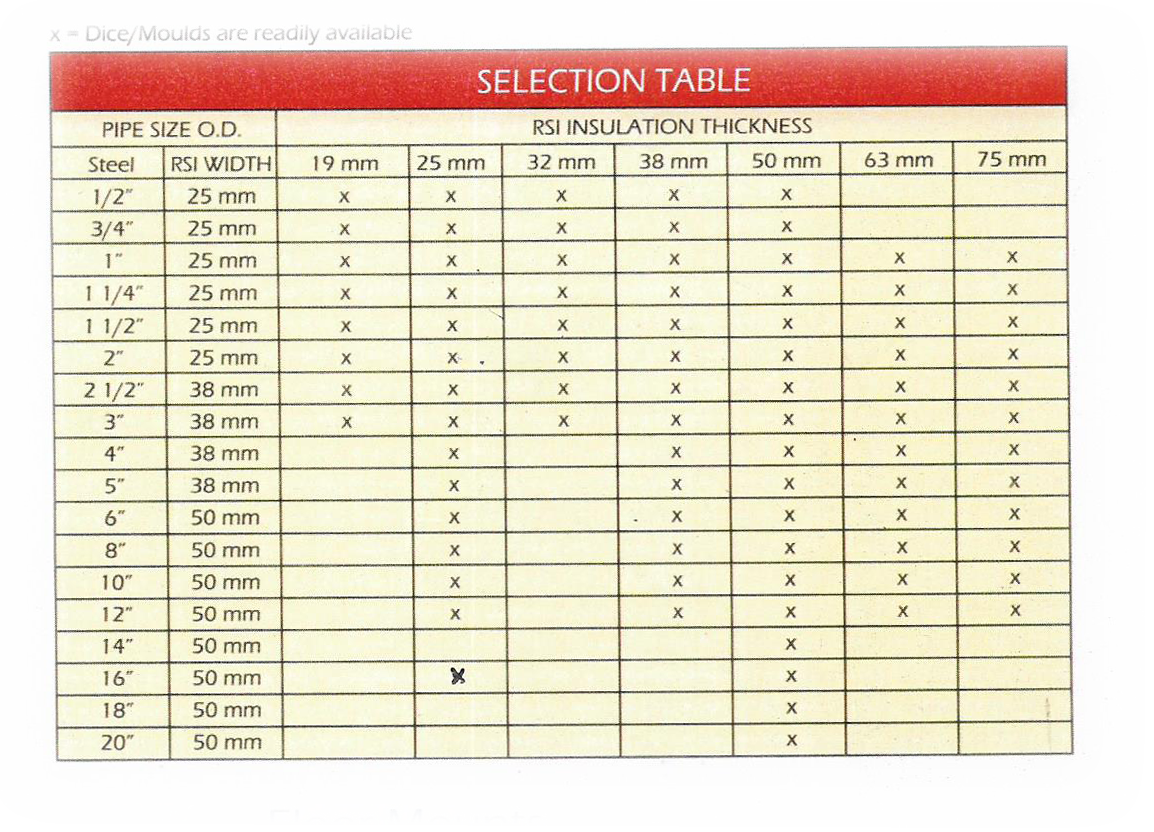

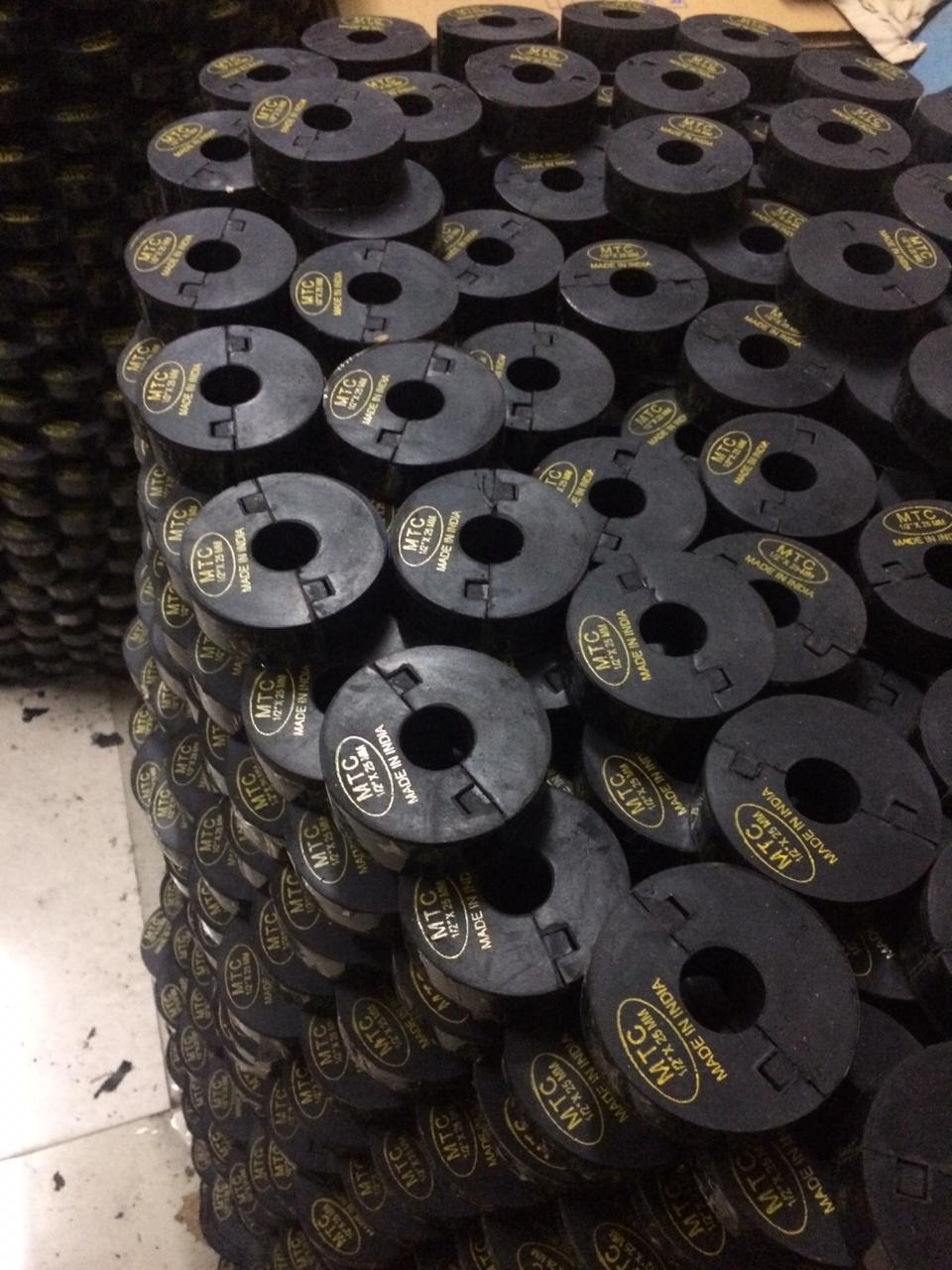

Rubber Support Inserts

Made from High Density Rubber to give Excellent Resistance to Distortion , High loading Capacity . It is dimensionally accurate . Due to Tongue & Groove design , it is easy to installation . IT IS AVAILABLE FROM 13MM ----- 75MM INSULATION THICKNESS .
SCHEDULE 40 STEEL PIPES FROM SIZE 1/2" TO 24 "

Density – 1400 Kg / meter cube
Thermal Conductivity – 0.16 w /m Degree C
Temperature Range - -20 Degree to 110 Degree
We also manufacture special designed Rubber Insert On Request

Multi Layer Pads

GALVANIZED STEEL PLATES ARE BEING PLACED ON BETWEEN TWO RUBBER SHEET WITH GOOD QUALITY ADHESIVE . WE PROVIDE ONE METAL OR TWO METAL PLATES AS PER SITE CONDITION . IT HAS GOT TWO DESIGN ONE IS RIBBED TYPE AND ANOTHER IS SQUARE DESIGN . THESE TYPES OF MULTI LAYER PADS GIVES BETTER NOISE & VIBRATION ISOLATION . IT IS AVAILABLE IN TWO SIZES ONE IS 100X100 MM AND ANOTHER IS 150X150MM .

LOAD RANGE : 3-4 KG / CM SQUARE
DEFLECTION : 2 TO 3 MM .

Floor Mount for Air Condensing Unit

IT IS MADE FROM NATURAL RUBBER . IT IS LOAD SUPPORTER ESPECIALLY DESIGNED FOR AIR CONDENSING UNIT . THESE MOUNTS POSSESSES BOTH HIGH COMPRESSIVE STRENGTH AND GOOD WEATHER RESISTANCE . VERY EFFECTIVE TO REDUCE VIBRATION AND NOISE LEVEL . IT HAS GOT LONG SERVICE LIFE . IT CAN WITHSTAND 50 KG LOAD PER PIECE . IT IS EASY TO INSTALL WITH BOLTS & NUTS

Material:natural Rubber | Colour: Black

Tensile Strength:Minimum 6.5 Mpa | Hardness:75+/-5 Shore A

For Rectangular Floor Mount Base Size:4 1/2" x 2" & Height 3"

For Round Floor Mount Big Base dia:4" x 2" & Height 2 1/2"

For Round Floor Mount Small Base Dia :3 1/2" x 2" & Height 1 3/4"

Blue Foam Rubber Pad

It is very effective in Vibration Technology . Blue Foam Pads are best available Pads in the market . It is better than any other Pads available in this Industry . It is only possible due to good quality Blue Foam placed in between Two Ribbed type Rubber Pads with superior quality of Adhesive . It is not affected by Water , Oil or other Chemicals .It is designed to withstand load upto 45 PSI .

It is available in Size 2x2x7/8" , 3x3x7/8" , 4x4x7/8" , 6x6x7/8" & 18x18x7/8" .
